รายละเอียดสินค้า
INTRODUCTION
Voltage Range:100V~240V,50-60HZ
DMX Channels:17CHS
Control mode:DMX512,auto mode, sound mode
Display: LCD Display + Press button
Color Temperature:7500K-8000K
Span Life: 50000 Hours
Light Source: Original Osram 150W White LED

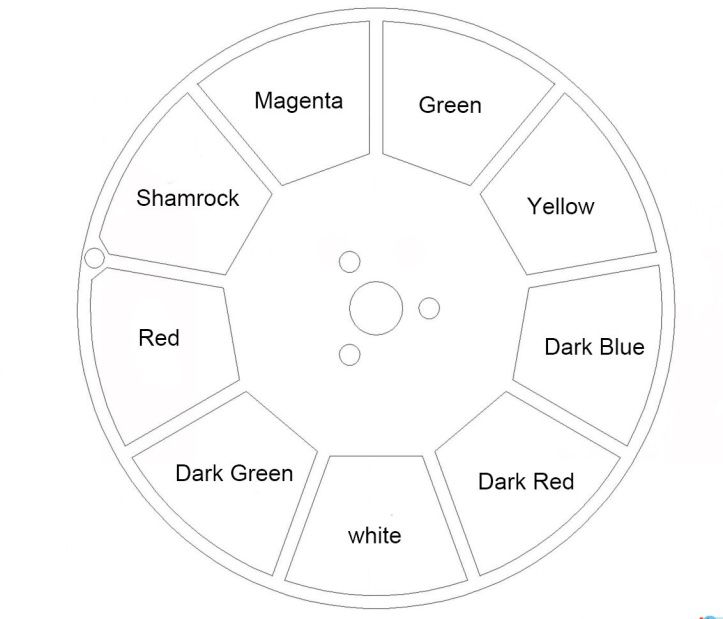

Color Wheel: 8 colors+open,semi color effect

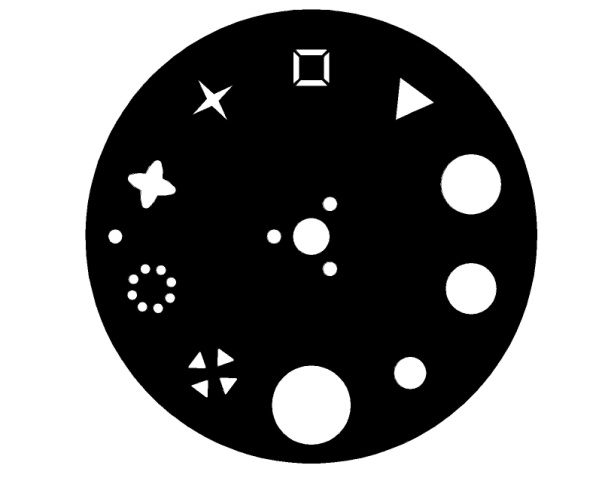

GOBO Wheel 1: 6 Fixed + 4 Open

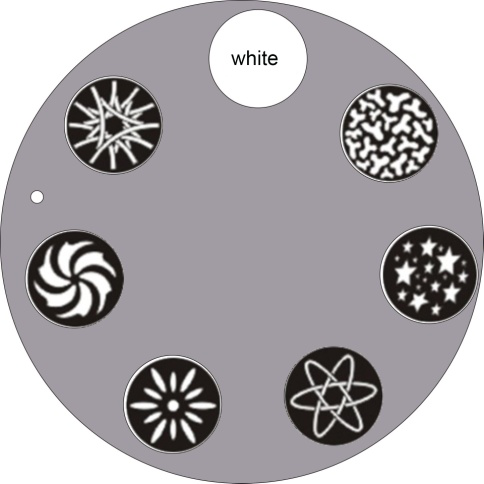

GOBO Wheel 2: 6 Rotating/Replaceable + Open
Prism: Rotating Circular Prism(Inner 8 facet prism+ outer 16 facet prism),
8-facet prism or linear prism selectableBeam Angle: 8° to 30°
Spot Angle: 30°
Wash Angle: 10°to 37°
Pan / Tilt Range: 540° / 270°
Pan / Tilt Correction: Automatic
Strobe: Two-blade strobe (1-25Hz）
Motors:13 Ultra-quiet motors, two pieces 3-phase motors,16 bit
Focus: Motorized
Frost: 37° (Wash)
N.W:10.3 kg

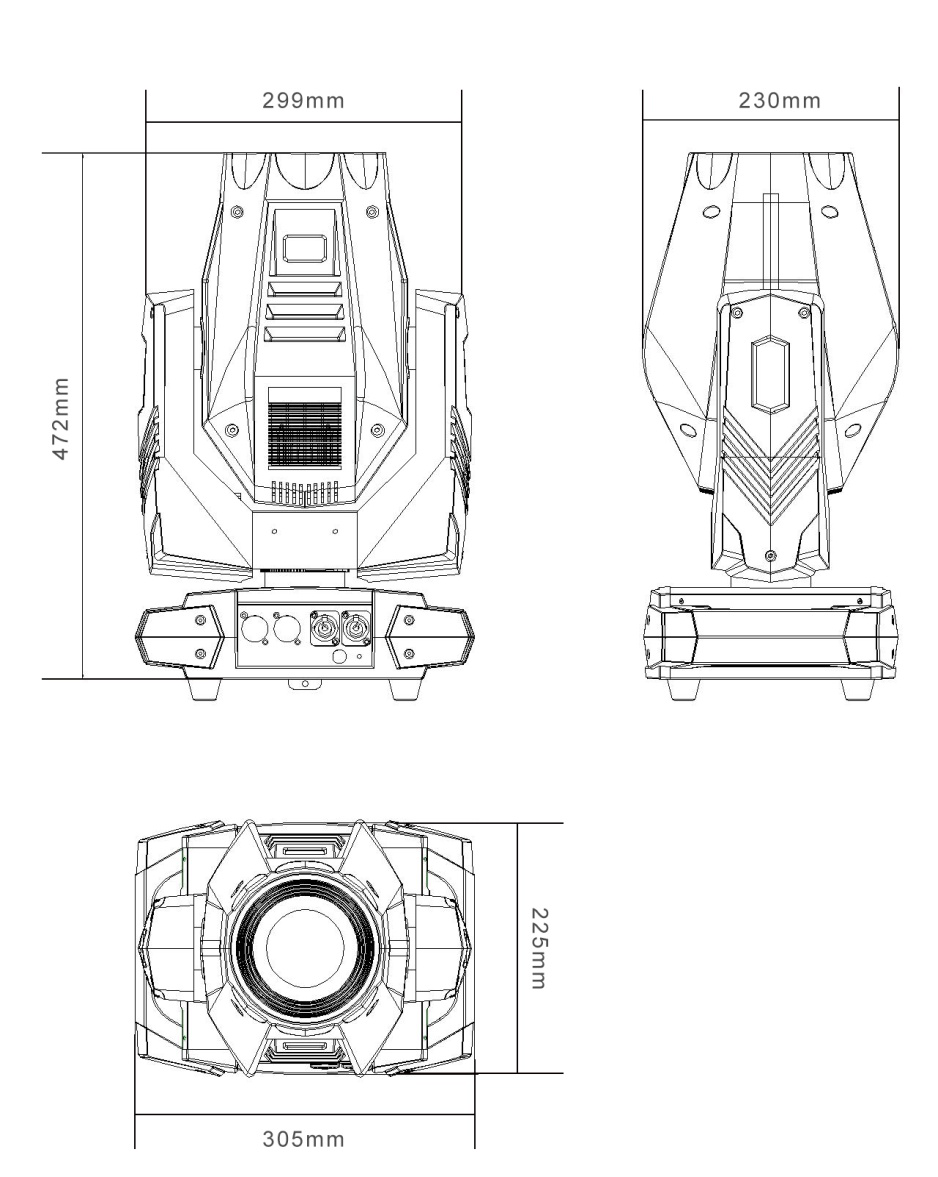

Size: 305 x 225 x 470mm
Certification: CE, RoHS, TUV and SGS
CHANNEL MAP
1. PAN MOVEMENT
2. PAN FINE
3. TILT MOVEMENT
4. TILT FINE
5. PAN & TILT FAST TO SLOW
6. DIMMER
7. SHUTTER
8. COLOR
9. STATIC GOBO
10. ROTATING GOBO
11. GOBO ROTATING
12. PRISM
13. PRISM ROTATING
14. FROST
15. FROST
16. ZOOM
17. RESET
