INTRODUCTION
Voltage: 100W~240V/50-60Hz (100~120V/ 50-60Hz selective )
Light Source: OSRAM SIRIUS HRI 230W
Ballast: Electronic ballast
Color temperature: 8500K
Average Lifespan: 2000H

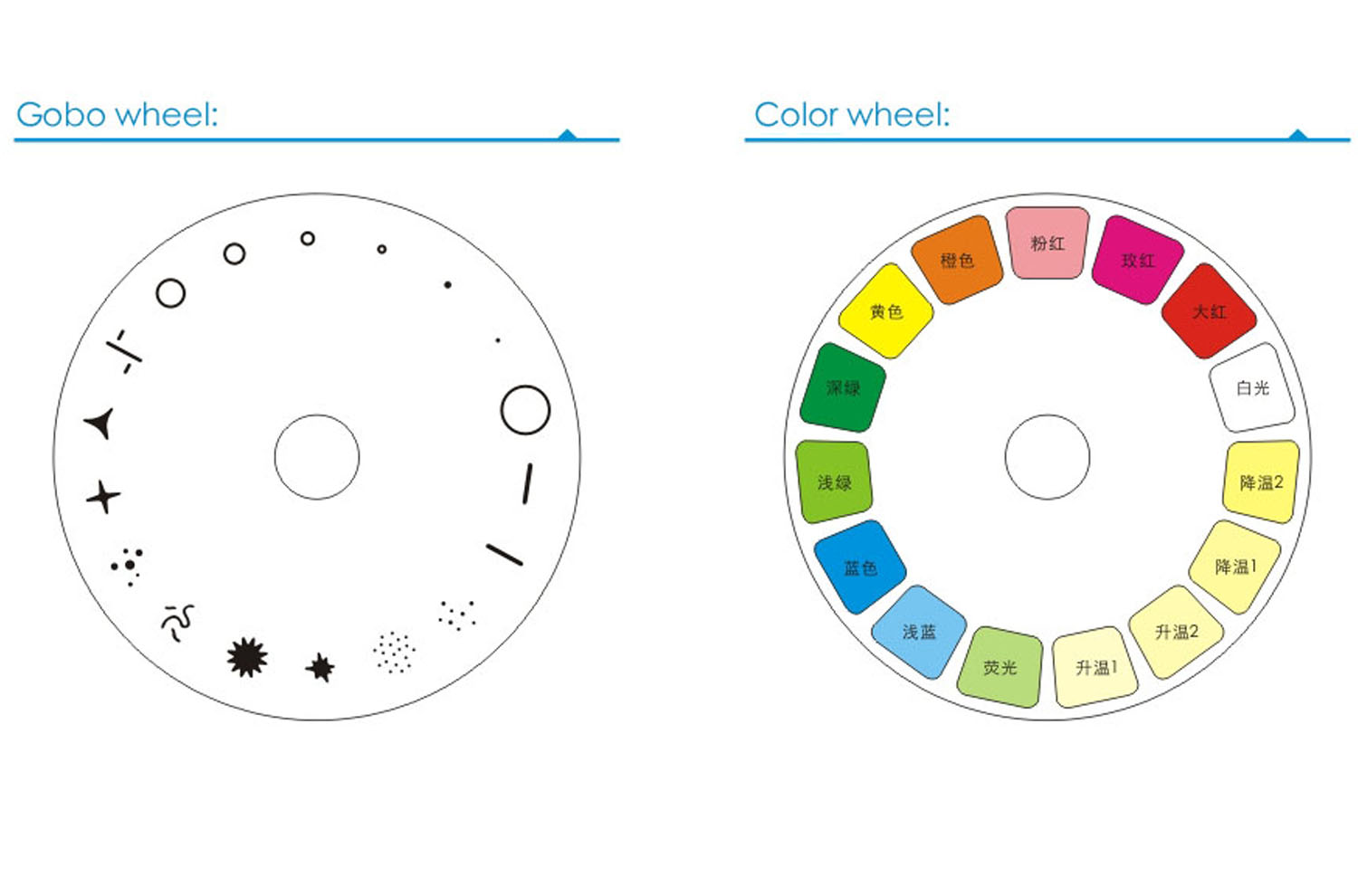

Color: 14 color + blank color wheel
Gobo: 17 fixed gobo + blank gobo
Beam angle: parallel beam angel 0 – 3.8°
Prism: rotation 8-face prism, Bilateral rotation .
Beam effect could stretch and close
Lens: high precision optical lens
Wash effect: adjustable Wash effects angle
Focus: linear adjustment
Dimmer: 0-100% linear adjustment
Pan/Tilt: X axis 540° Y axis 250°automatically accurate positioning
Strobe: Double lens strobe (0.5-9 times/ second)
Motor; 13pcs mute sound motor, 2pcs three phase motor, 16bit driver
Control mode: Standard DMX512, Automatic and Master/ slave mode
Channel: 16 CHS
Features: Remote control lamp’s switch function, display light and
lamp’s using time, Automatically adjust cooling-fan’s speed,
50% energy saving when strobe lens shu
Structure: heat-proof plastic + module pressing alloy materials
IP Rate: IP20
Certification: CE, RoHS, TUV and SGS
DMX CHANNELS
1.COLOR
2.SHUTTER
3.DIMMER
4.GOBO
5.PRISM
6.PRISM ROTATING
7.ZOOM
8.FROST
9.FOCUS
10.PAN
11.PANFINE
12.TILT
13.TILTFINE
14.PAN&TILT SPEED
15.FUNCTION
16.LAMP
